Waist Height Turnstile

Reliable waist-height access barriers designed for secure entry control and smooth pedestrian movement.

Smart Access Control for Smooth Movement

Reliable waist-height access barriers designed for secure entry control and smooth pedestrian movement.

Is your facility struggling to manage employee movement while keeping unauthorized access under control? Open entry points and manual checking can create security gaps, slow down daily operations, and make it difficult to track who enters or exits.

Our Waist Height Turnstiles provide a practical solution by organizing pedestrian flow while allowing quick and convenient access for authorized users. Designed for offices, factories, commercial buildings, and restricted areas, they help you improve security without creating unnecessary barriers.

Mechatronix systems feature a three-arm tripod mechanism with MEX-Lock technology and support integration with RFID, biometric devices, and time attendance systems for efficient access management.

Key Features:

3-year warranty with after-sales service support under SLA
PLC-based control panel for quick and easy integration with access control devices
Heavy-duty MEX-Lock mechanism for reliable and long-lasting performance
Available in stainless steel and mild steel material options to suit different environments
Fail-secure functionality with manual release keys for enhanced security
Suitable for offices, industrial facilities, commercial buildings, and secure entry points across Pakistan

Controlled Access Solutions

The waist height turnstiles feature a durable tripod access control mechanism that allows one authorized person to pass at a time, helping reduce unauthorized entry attempts and maintain organized pedestrian flow. The reliable MEX-Lock system ensures smooth locking performance during frequent daily operations, while the fail-secure function with manual release keys provides additional security during emergency situations.

Designed for flexible applications, these systems support RFID, biometric, and time attendance integrations through advanced access control compatibility. Available in single and double-lane configurations, they can be customized to handle different traffic volumes and facility requirements.

More Detailed Information

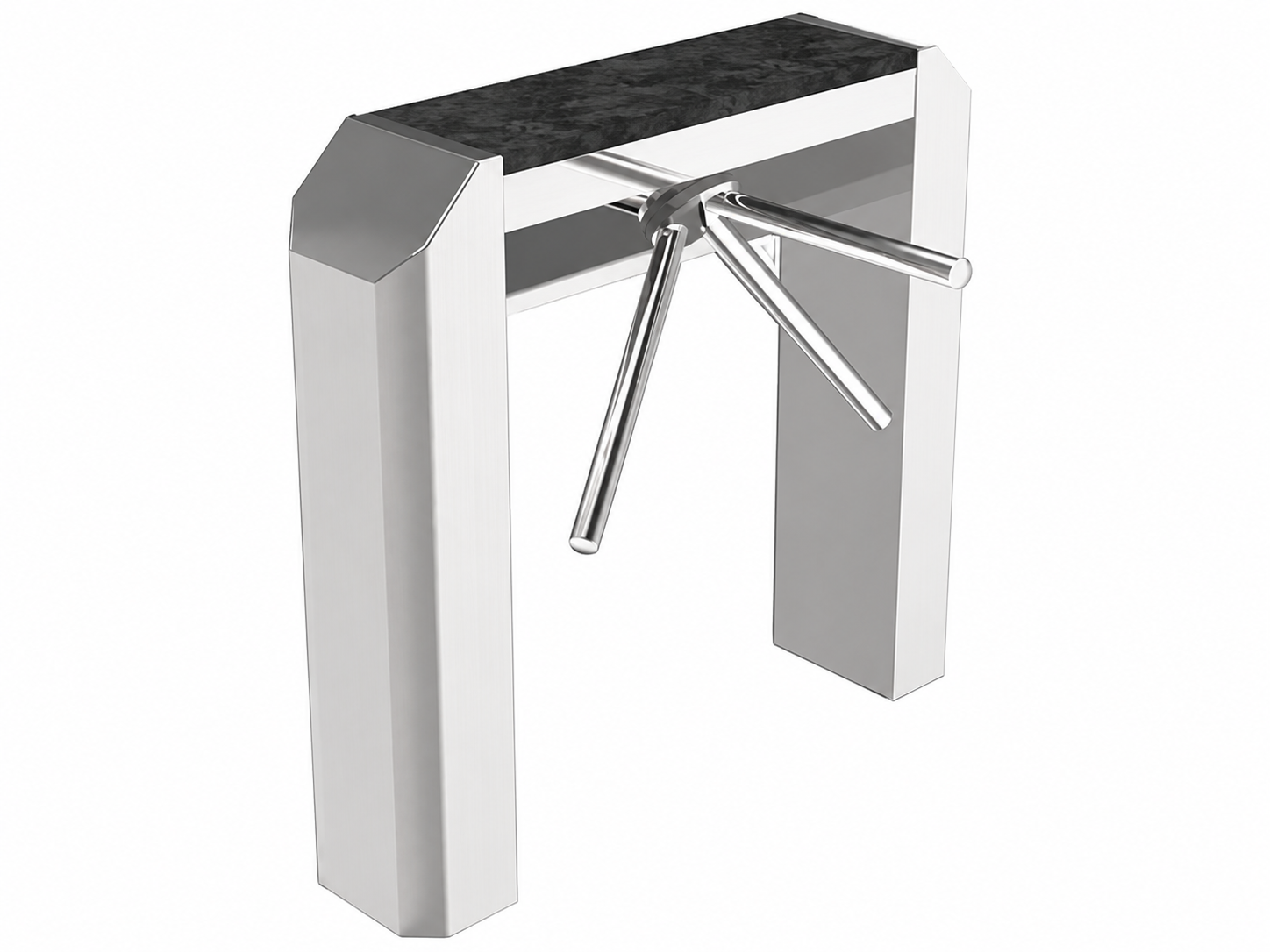

Single Lane Waist Height Turnstile

This single-lane access barrier is designed for controlled pedestrian movement in offices, commercial buildings, and indoor security areas. It features a three-arm tripod rotor mechanism with 120° positioning, allowing smooth passage while preventing unauthorized access. Compatible with RFID, biometric readers, and time attendance systems, it provides reliable operation with low maintenance requirements.

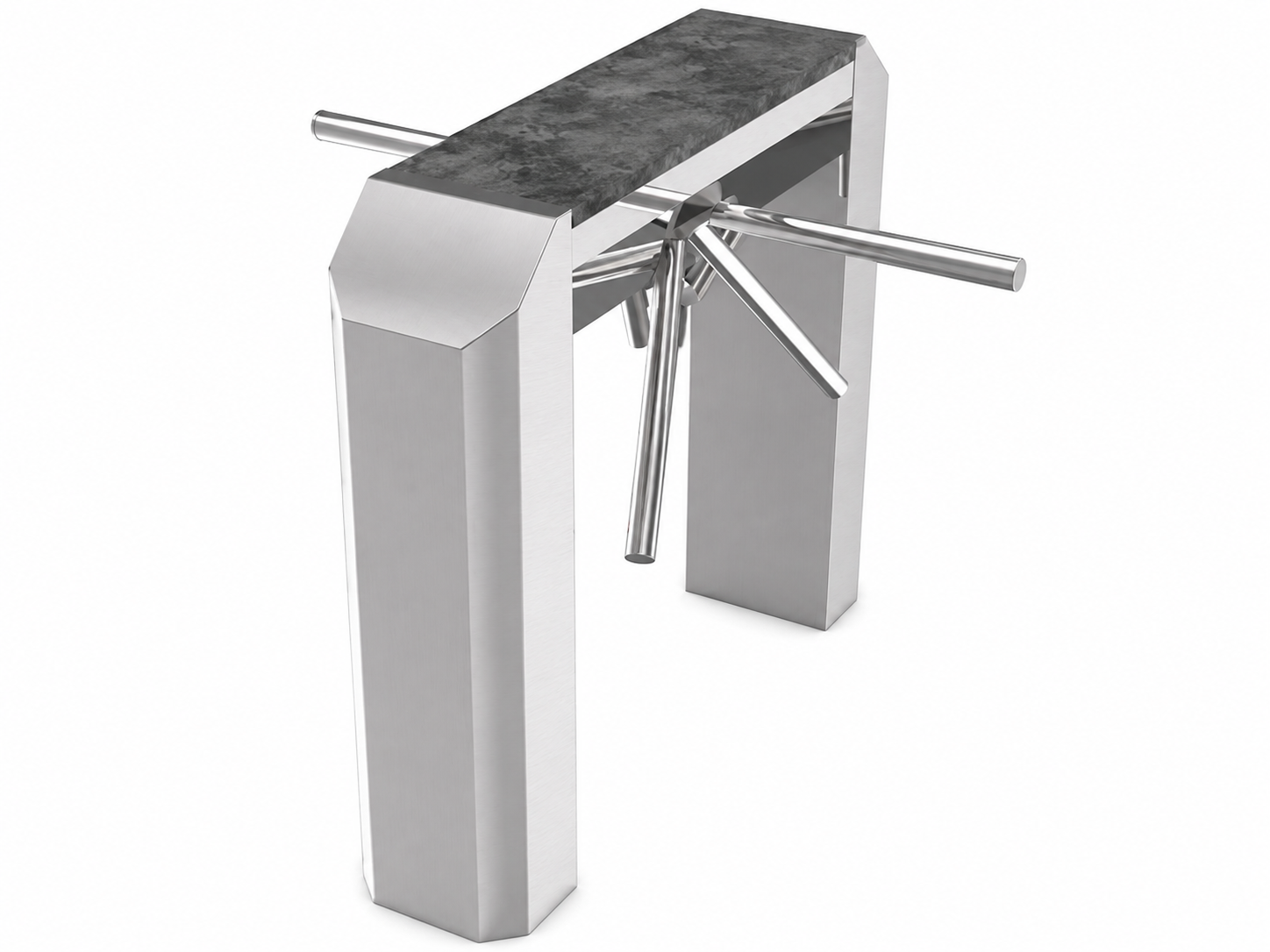

Double Lane Waist Height Turnstile

Designed for high-traffic entry and exit points, this double-lane configuration provides separate pedestrian pathways for better flow management. It features a dual tripod mechanism, bi-directional operation, and intelligent access control integration. Supporting RFID cards, biometric verification, and centralized monitoring systems, it helps improve security while maintaining efficient movement in busy facilities.

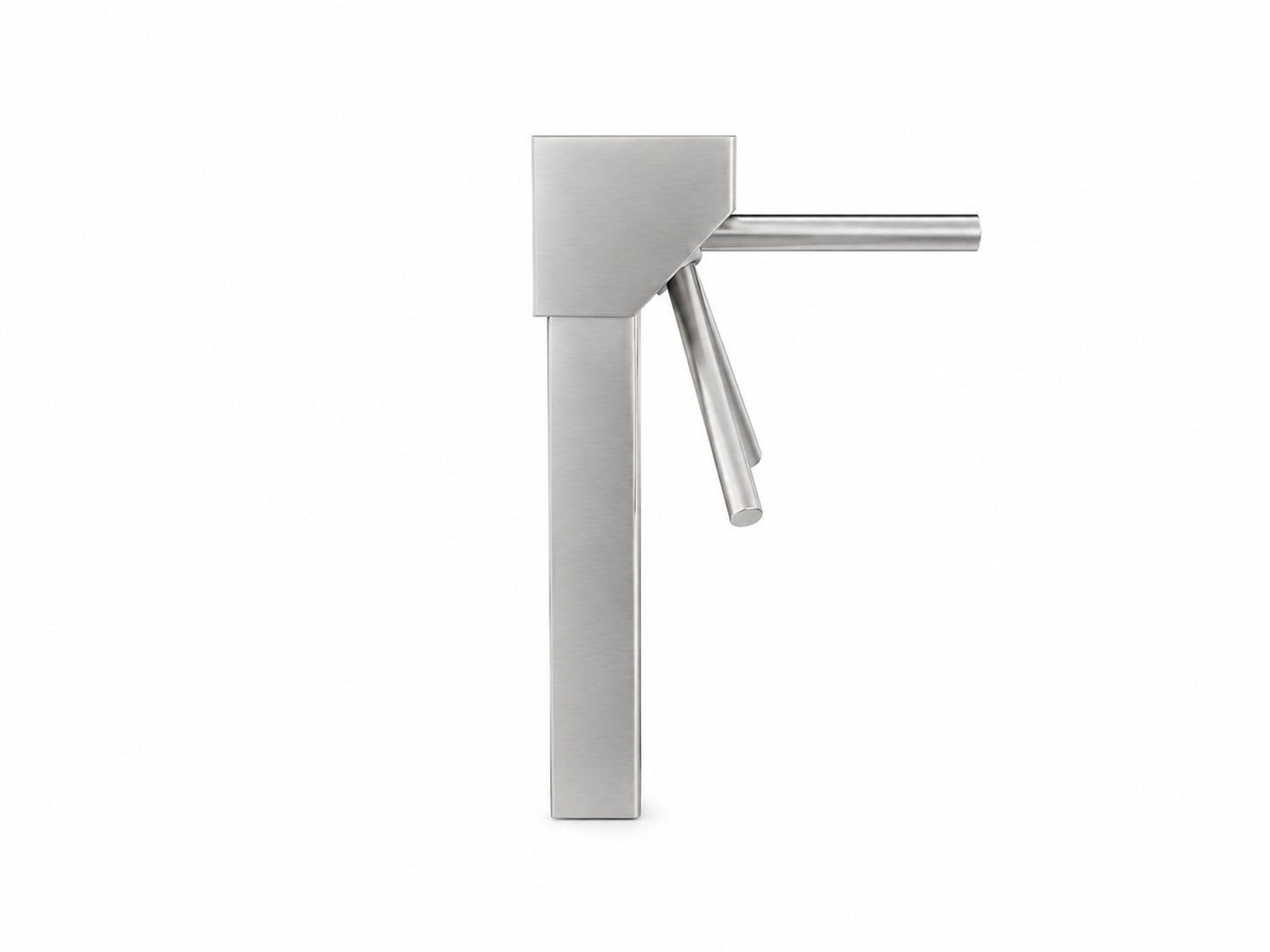

Single Lane Tripod Turnstile

This compact access solution is ideal for locations requiring reliable security with limited installation space. It uses a durable three-arm rotor system, mechanical locking mechanism, and controlled rotation technology to manage one-person entry. Its low-power operation, easy integration with access control devices, and minimal maintenance make it suitable for offices, factories, and commercial buildings.

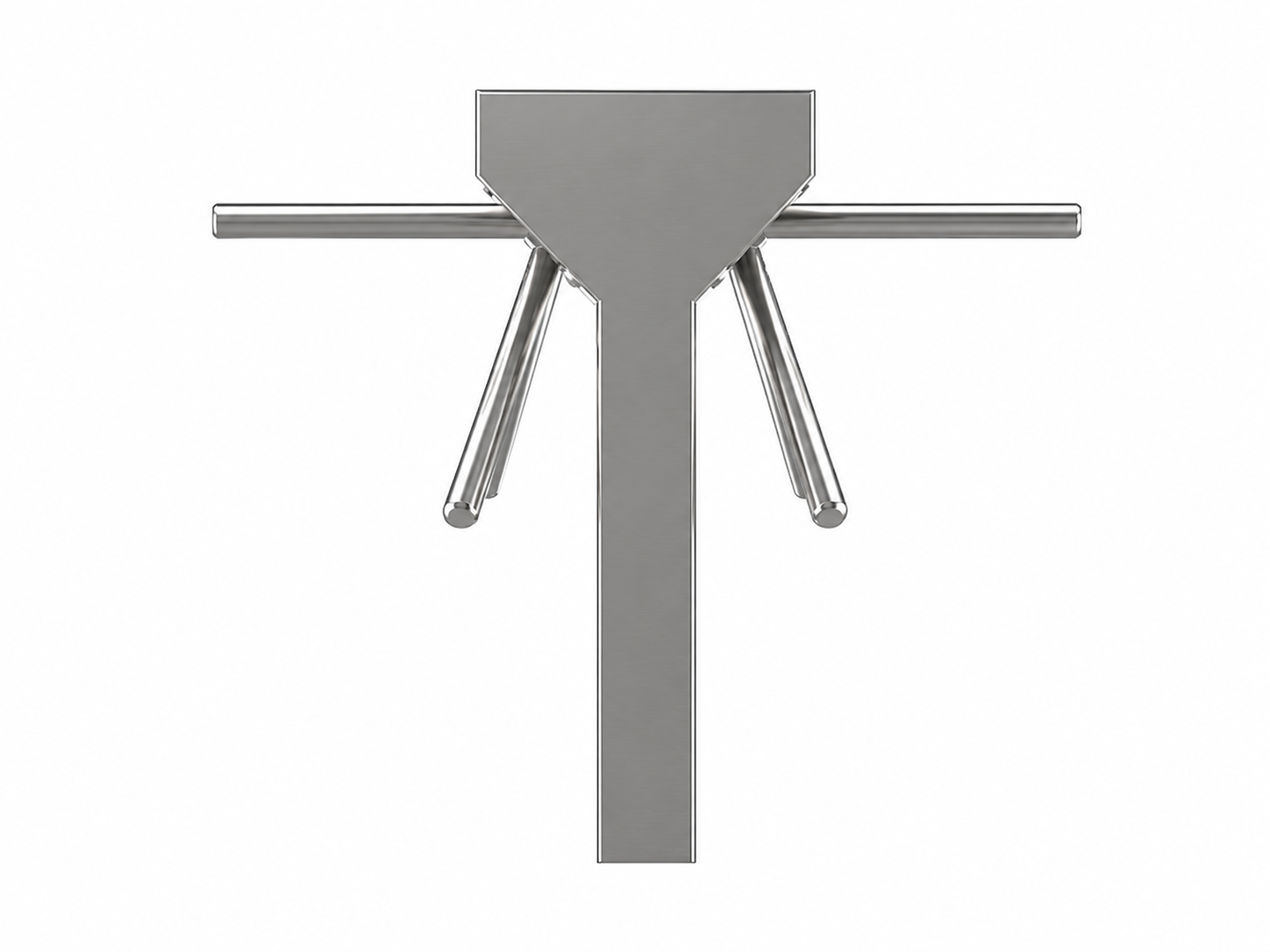

Double Lane Tripod Turnstile

Built for facilities with higher pedestrian volumes, this double-lane model supports efficient entry and exit management within limited space. It features dual passage lanes, automatic locking control, RFID and biometric compatibility, and time attendance integration. Its durable structure and reliable operation make it suitable for visitor management, employee tracking, and secure facility access.

Security & Safety Features:

Robust design for Indoor/Outdoor security installations
Available in 304 Grade Stainless steel / Mild steel Powder coated finish
Heavy duty turns MEX-LOCK Mechanism
Self-centering & Electromechanically operated
Programmable Logic Controller (PLC) based Electric Panel
Mechanical key override – Clockwise & Anti Clockwise directional control
Quiet, buffered solenoids & pawls
Solenoids Rated for 100% duty cycles
Fiber locking disk and pawls – Low maintenance
Fail-Secure & Fail-Safe (optional) feature

Passage Width	460 mm approx.
Locking Mechanism	MEXLOCK (Electro Mechanical)
Duty Cycle	100% Continuous Operation
Lane Options	Single Lane / Double Lane
Material	SS316 / SS304 / Mild Steel
Operation Mode	Fail Secure
Access Integration	Biometric, RFID, card readers, attendance systems
Transit Control	Uni-directional / Bi-directional / Ratchet Gear
Security Mode	Fail-secure with optional fail-safe
Application	Indoor & outdoor installations
Dimensions	L x W x H = 1200mm x 800mm x 1025mm

Download Waist Height Turnstile Brochure

Pedestrian Access Control

Smart Access Control for Secure Entry & Exit

Mechatronix Waist Height Turnstiles are designed to help you manage pedestrian movement with controlled access, smooth operation, and reliable security. Equipped with a three-arm tripod mechanism and heavy-duty MEX-Lock technology, they allow only one authorized person to pass at a time, helping you improve security and maintain accurate movement records.

Available in single and double-lane configurations, these turnstiles integrate easily with your existing security infrastructure through a PLC-based control system. You can connect them with multiple authentication and management solutions to create a complete entry management system that improves security and automates verification.

Fingerprint & Biometric Readers

Facial Recognition Systems

RFID & Card Readers

Time Attendance Systems

Visitor Management Solutions

3rd-Party Access Control Panels

Top Reasons To Choose Mechatronix Waist Height Turnstiles?

Seamless Access Control Integration

Connect your turnstiles with existing security systems, including fingerprint scanners, facial recognition devices, RFID readers, access cards, and time attendance systems. The PLC-based control panel allows smooth communication between the turnstile and your access control setup.

Heavy-Duty Design for Continuous Operation

Built with a strong tripod mechanism and MEX-Lock technology, these turnstiles are designed for high-frequency usage while maintaining smooth movement and dependable locking performance.

Flexible Configuration Options

Choose between single-lane and double-lane models depending on your entry requirements. Whether you need controlled employee access or high-volume pedestrian management, Mechatronix provides a suitable configuration.

Reliable Security with Safety Features

With fail-secure operation, manual override keys, and optional fail-safe functionality, these turnstiles help you maintain security while supporting emergency access requirements.

Answers to Your Most Common Questions!

1. Can Mechatronix Waist Height Turnstiles integrate with biometric systems?

Yes. These turnstiles can be connected with biometric devices such as fingerprint scanners, facial recognition systems, RFID readers, and other access control technologies through the PLC-based control panel.

2. What is the difference between single and double-lane waist height turnstiles?

Single-lane models are suitable for locations with moderate pedestrian movement, while double-lane models provide separate entry and exit paths for areas requiring higher traffic capacity.

3. Are these turnstiles suitable for outdoor installation?

Yes. Mechatronix offers stainless steel and powder-coated mild steel options designed for different installation environments. For outdoor applications, proper weather protection and installation conditions should be considered.

4. What happens during a power failure?

The turnstiles include a fail-secure mechanism with manual release keys. Optional fail-safe configurations can also be provided depending on your security and emergency access requirements.

5. How durable are waist height turnstiles for continuous use?

The heavy-duty MEX-Lock mechanism, electromechanical operation, and industrial-grade materials allow these turnstiles to perform reliably in high-traffic environments with minimal maintenance requirements.
